Antenna Calibrations
This laboratory is ISO 17025 accredited and provides both commercial and field calibration services for various antennas including magnetic loop, horn, biconical, and log periodic types. It supports CISPR16 and ANSI C63.5 standards, offers normalized site attenuation measurements, and has a Calibration and Measurement Capability (CMC) uncertainty defined at a 95% confidence level, noting that field conditions may increase actual uncertainties.


Overview
This laboratory offers commercial calibration service and field calibration service, where noted. 2 Calibration and Measurement Capability Uncertainty (CMC) is the smallest uncertainty of measurement that a laboratory can achieve within its scope of accreditation when performing more or less routine calibrations of nearly ideal measurement standards or nearly ideal measuring equipment. CMCs represent expanded uncertainties expressed at approximately the 95 % level of confidence, usually using a coverage factor of k = 2. The actual measurement uncertainty of a specific calibration performed by the laboratory may be greater than the CMC due to the behavior of the customer’s device and to influences from the circumstances of the specific calibration. 3 Field calibration service is available for this calibration. Please note the actual measurement uncertainties achievable on a customer’s site can normally be expected to be larger than the CMC found on the A2LA Scope. Allowance must be made for aspects such as the environment at the place of calibration and for other possible adverse effects such as those caused by transportation of the calibration equipment. The usual allowance for the actual uncertainty introduced by the item being calibrated, (e.g. resolution) must also be considered and this, on its own, could result in the actual measurement uncertainty achievable on a customer’s site being larger than the CMC.
- Over 50 Years of Testing Excellence
- Convenient Locations Across the West Coast
- End-to-end support and consultation
Capabilities: range CMC (2)

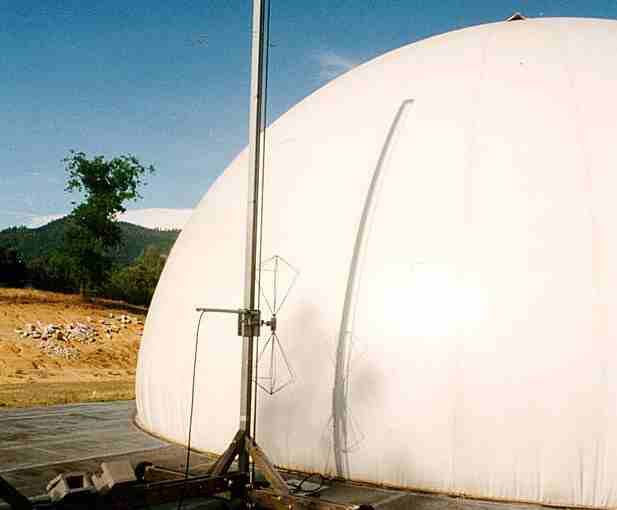

Based upon the scope, we can do magnetic loop antennas, horn antennas, and normalized site attenuation.
Equipment
Bicon
Horn
Hybrid
Log periodic
Magnetic Loop
Biconical
Standards
ISO 17025 accredited / CISPR & ANSI is the standards CISPR16 & ANSI C63.5
VSWAR – parameter
Symmetry – parameter measurements you have to make
Normalized site attenuation – not a standard
